Question 49

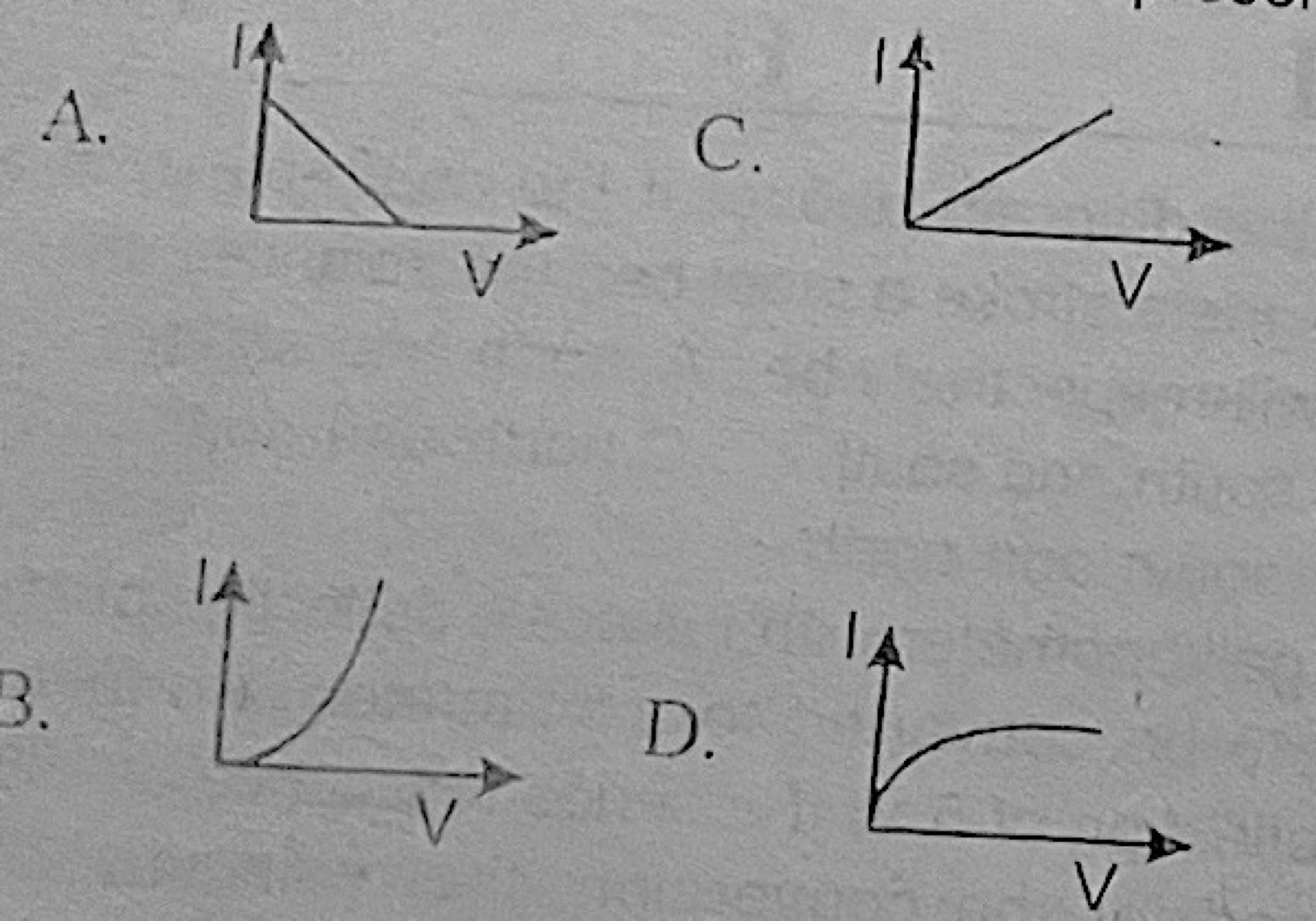

ElectronicsA typical transistor characteristic is represented as
- A.A
- B.B
- C.C
- D.D
Show the answer and explanation
Answer: D (D)
Explanation
The output characteristic of a transistor (collector current against collector voltage) rises quickly at first and then becomes almost flat, as in graph D.
