JAMB Physics 2008 Question 27

Question 27

Waves

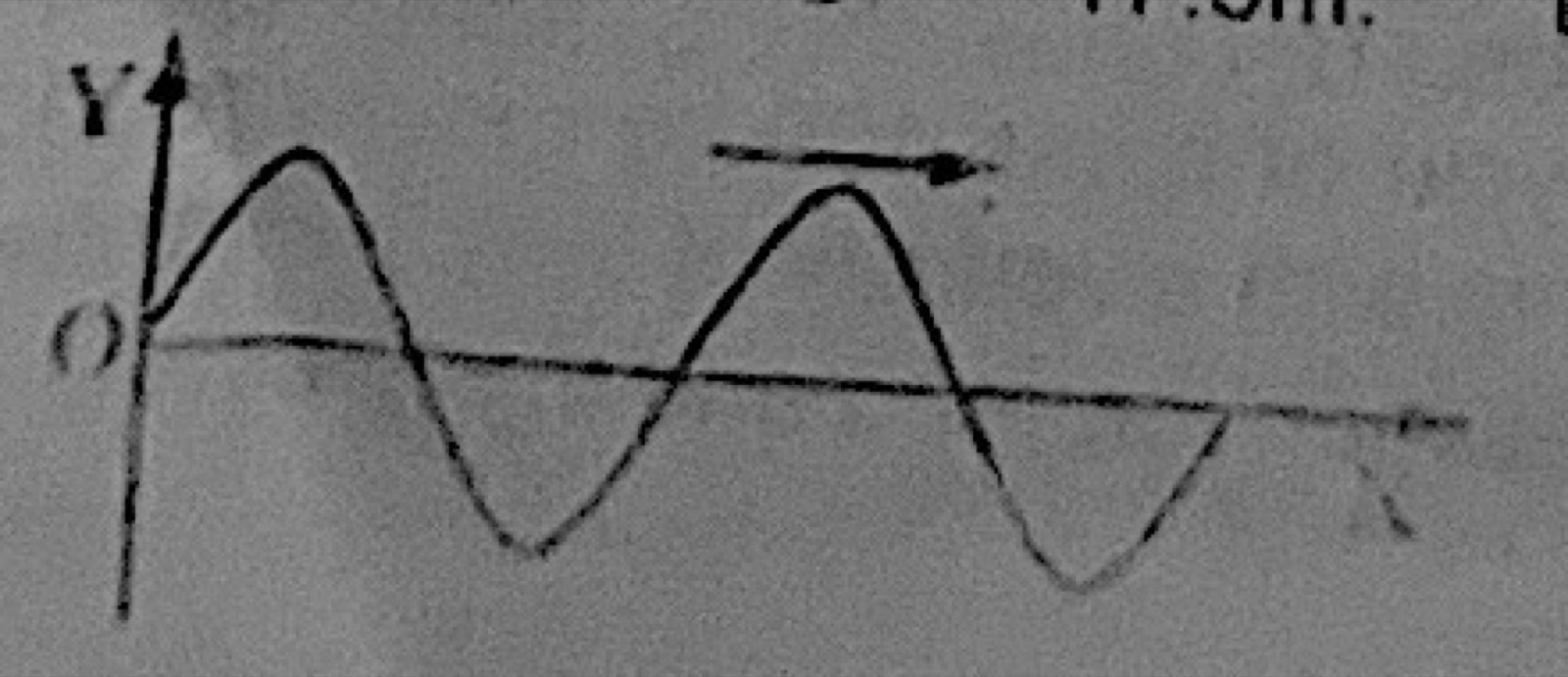

The above figure shows the motion of a progressive wave along a string. The particle motion of the medium is in the direction

Diagram for this question
  1. A.parallel to OX.
  2. B.Parallel to OY
  3. C.60° to OX.
  4. D.60° to OY.
Show the answer and explanation

Answer: B (Parallel to OY)

Explanation

On a string the wave is transverse. The wave moves along OX (the arrow), while each particle of the string moves up and down, parallel to OY.
