JAMB Physics 2006 Question 30

Question 30

Magnetism

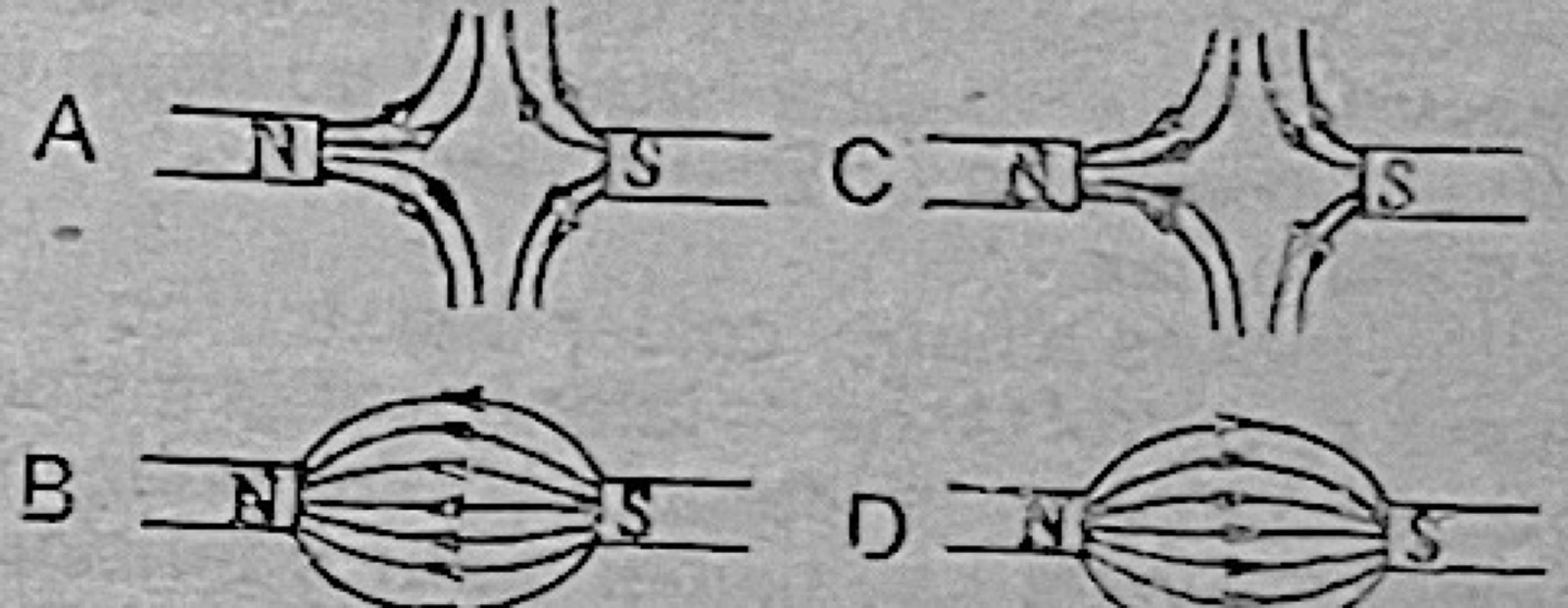

Which of the following diagrams represents the magnetic field of two isolated unlike poles?

Diagram for this question
  1. A.A
  2. B.B
  3. C.C
  4. D.D
Show the answer and explanation

Answer: D (D)

Explanation

Unlike poles attract, so field lines run straight across from N to S, and the arrows point from the N pole towards the S pole. Only D shows this.
