JAMB Physics 1980 Question 9

Question 9

Capacitors

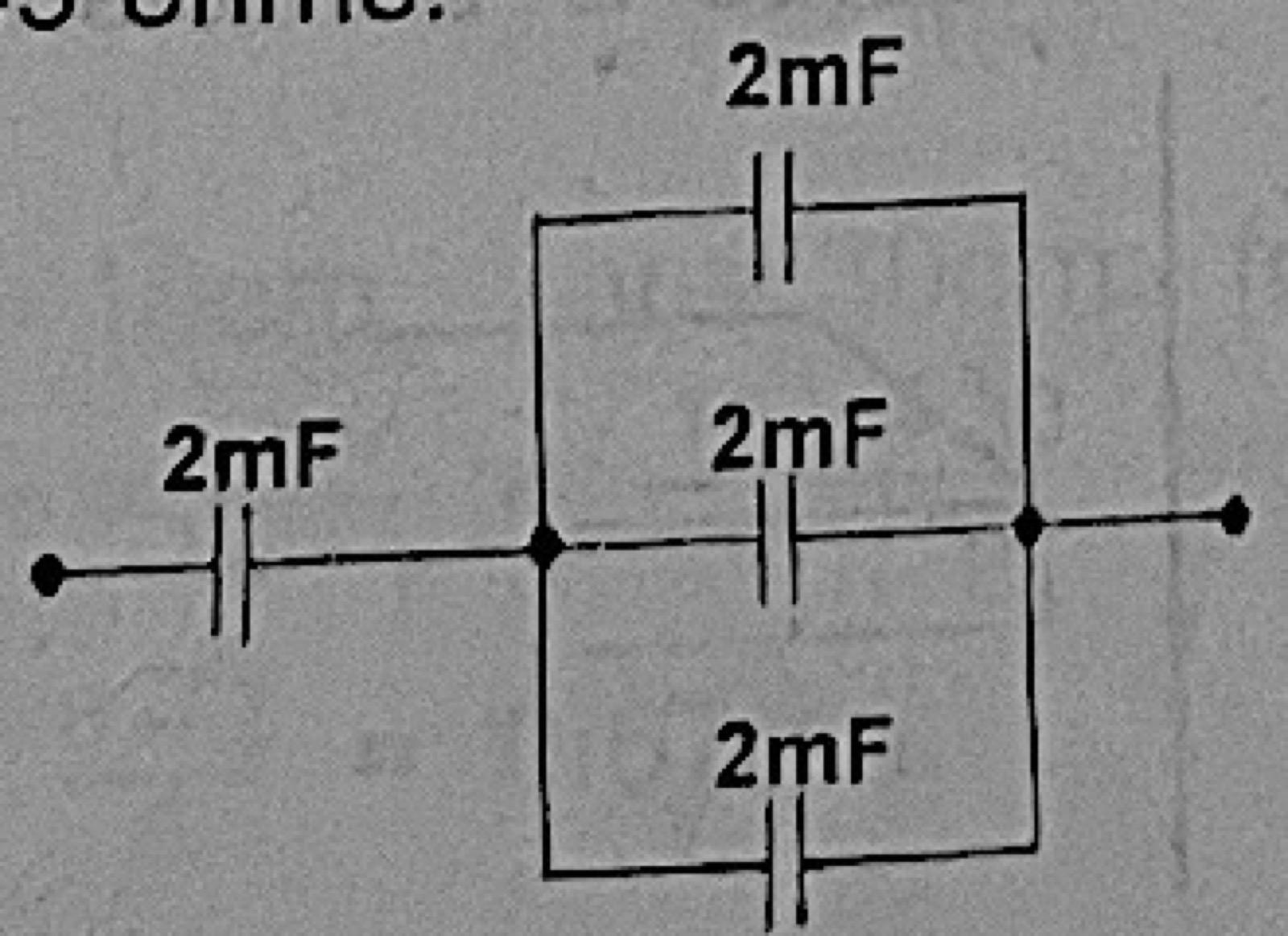

The total capacitance of the circuit above is

Diagram for this question
  1. A.0.25 mF
  2. B.0.50 mF
  3. C.0.75 mF
  4. D.1.25 mF
  5. E.1.50 mF
Show the answer and explanation

Answer: E (1.50 mF)

Explanation

The three 2 mF capacitors in parallel add to 6 mF. In series with 2 mF: C = (2 × 6)/(2 + 6) = 1.5 mF.
