JAMB Chemistry 2011 Question 5

Question 5

Gas Laws

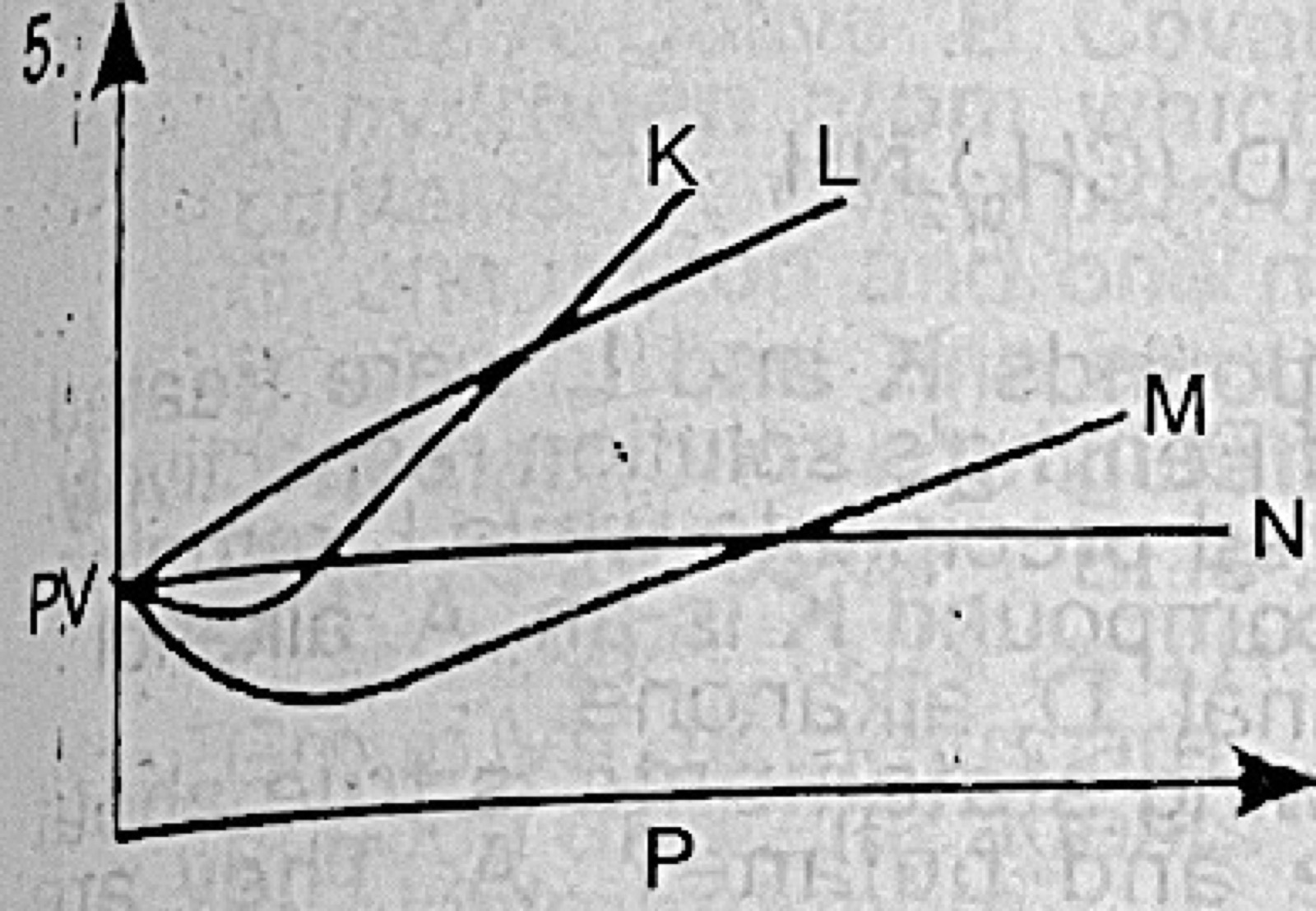

From the diagram above, an ideal gas can be represented by

Diagram for this question
  1. A.M
  2. B.N
  3. C.K
  4. D.L
Show the answer and explanation

Answer: B (N)

Explanation

For an ideal gas at constant temperature PV is constant (Boyle's law), so a graph of PV against P is a horizontal line, N.
