Question 6

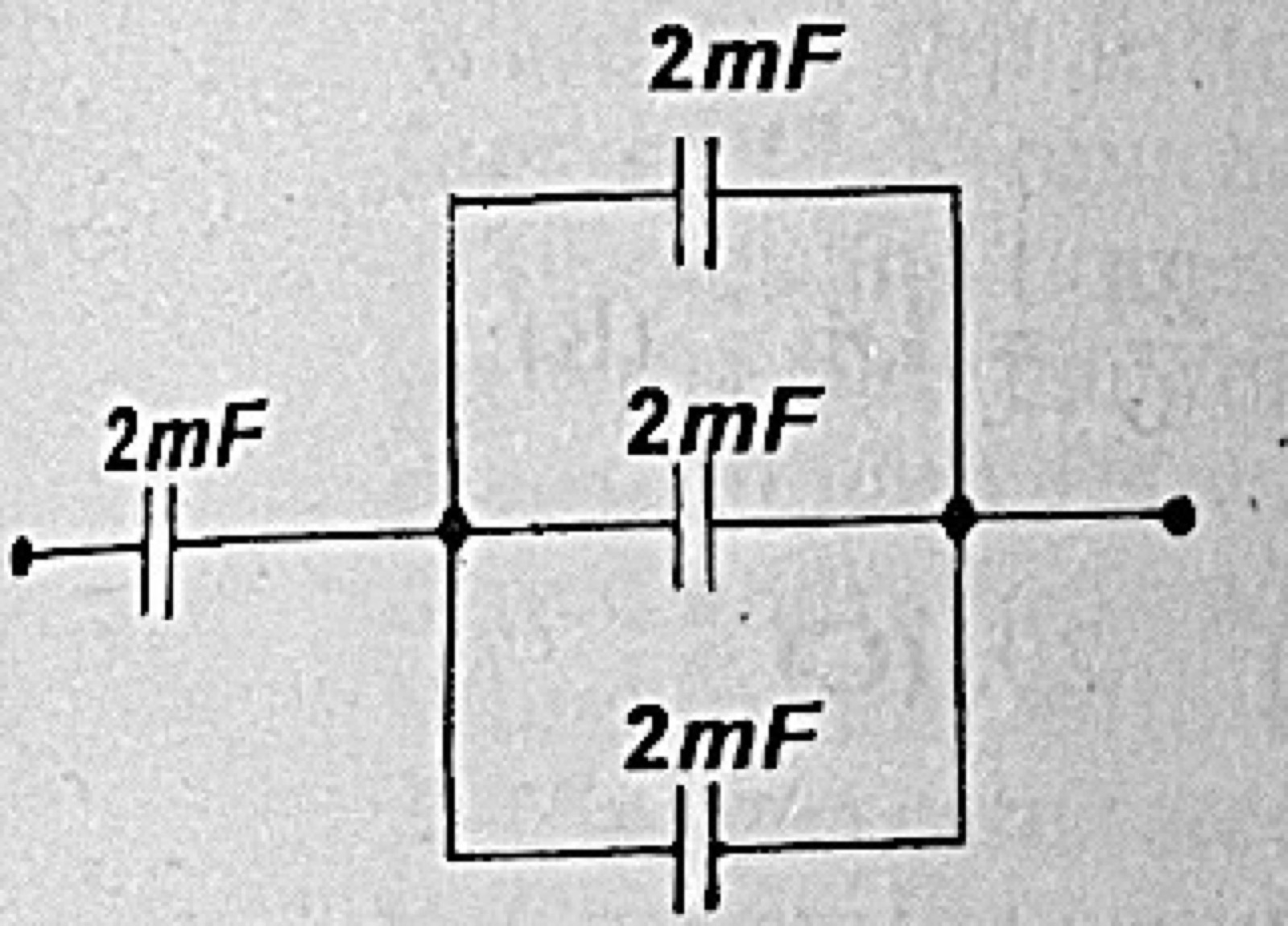

CapacitorsThe total capacitance of the circuit below is
- A.0.25mF
- B.1.50mF
- C.0.75mF
- D.1.25mF.
Show the answer and explanation
Answer: B (1.50mF)
Explanation
The three 2 mF capacitors in parallel give 6 mF. In series with 2 mF: C = (2 × 6)/(2 + 6) = 1.5 mF.
